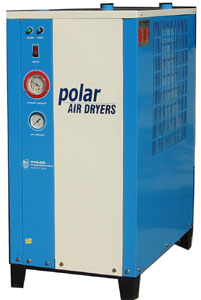

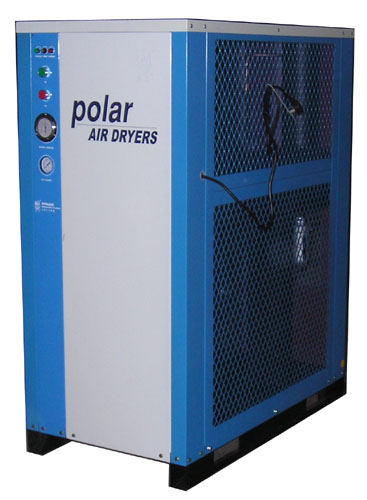

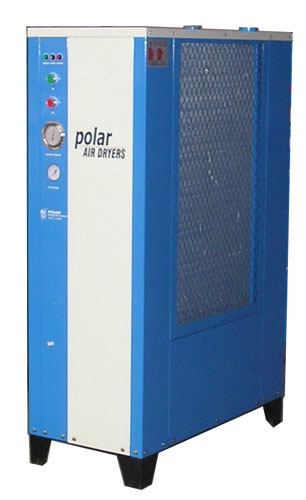

air
cooled type refrigerated compressed air dryer |
|
|
| |
high temperature
type（≤80°C） |
|
|
| model |
C-3.7 |
C-7.5 |
C-15 |
C-22 |
C-37 |
C-55 |
C-75 |
|
air
flow
m3/min(ANR)
|
0.47 |
1.0 |
2.4 |
3.6 |
6.2 |
9.2 |
14.2 |
| press
dew °C |
2°C
- 10°C |
|
power
source
|
1Ø
220V 50HZ（or select 60HZ）
|
| refrigerant |
R-22(or
select R407C/R134a/R410a/R404a) |
| inlet
air |
≤80°C |
| air
compressor kw/HP |
3.7/5 |
7.5/10 |
15/20 |
22/30 |
37/50 |
55/75 |
75/100 |
| in/outlet
pipe dia inch |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
1-1/2 |
2 |
|
outside
dim
|
H mm |
595 |
780 |
780 |
960 |
995 |
1100 |
1200 |
| W mm |
530 |
560 |
560 |
615 |
620 |
670 |
715 |
| D mm |
565 |
615 |
615 |
715 |
725 |
1060 |
1060 |
|
|
|
| model |
C-120 |
C-125 |
C-150 |
C-190 |
C-240 |
C-300 |
C-360 |
|
air
flow
m3/min(ANR)
|
18.7 |
23.8 |
30.6 |
36.5 |
44.2 |
56.1 |
72.3 |
| press
dew°C |
2°C
- 10°C |
|
power
source
|
3Ø
380V 50HZ（or select 60HZ）
|
| refrigerant |
R-22(or
select
R407C/R134a/R410a/R404a) |
| inlet
air |
≤
80°C |
| air
compressor kw/HP |
120/160 |
125/170 |
150/200 |
190/250 |
240/320 |
300/400 |
360/480 |
| in/outlet
pipe dia inch |
2-1/2 |
3 |
4 |
4 |
5 |
5 |
6 |
|
outside
dim
|
H mm |
1200 |
1350 |
1500 |
1600 |
1850 |
1850 |
2010 |
| W mm |
750 |
750 |
850 |
1000 |
1000 |
1200 |
1200 |
| D mm |
1450 |
1450 |
1650 |
1850 |
1850 |
1980 |
1980 |
|
|
|
|
low temperature type（≤50°C） |
| model |
CD-3.7 |
CD-7.5 |
CD-15 |
CD-22 |
CD-37 |
CD-55 |
CD-75 |
|
air
flow
m3/min(ANR)
|
0.47 |
1.0 |
2.4 |
3.6 |
6.2 |
9.2 |
14.2 |
| press
dew °C |
2°C
- 10°C |
|
power
source
|
1Ø
220V 50HZ（or select 60HZ）
|
| refrigerant |
R-22(or
select R407C/R134a/R410a/R404a) |
| inlet
air |
≤50°C |
| air
compressor kw/HP |
3.7/5 |
7.5/10 |
15/20 |
22/30 |
37/50 |
55/75 |
75/100 |
| in/outlet
pipe dia inch |
1/2 |
3/4 |
1 |
1-1/4 |
1-1/2 |
1-1/2 |
2 |
|
outside
dim
|
H mm |
495 |
680 |
680 |
860 |
895 |
1000 |
1100 |
| W mm |
530 |
560 |
560 |
615 |
620 |
670 |
715 |
| D mm |
565 |
615 |
615 |
715 |
725 |
1060 |
1060 |
|
|
|
| model |
CD-120 |
CD-125 |
CD-150 |
CD-190 |
CD-240 |
CD-300 |
CD-360 |
|
air
flow
m3/min(ANR)
|
18.7 |
23.8 |
30.6 |
36.5 |
44.2 |
56.1 |
72.3 |
| press
dew°C |
2°C
- 10°C |
|
power
source
|
3Ø
380V 50HZ（or select 60HZ）
|
| refrigerant |
R-22(or
select
R407C/R134a/R410a/R404a) |
| inlet
air |
≤
50°C |
| air
compressor kw/HP |
120/160 |
125/170 |
150/200 |
190/250 |
240/320 |
300/400 |
360/480 |
| in/outlet
pipe dia inch |
2-1/2 |
3 |
4 |
4 |
5 |
5 |
6 |
|
outside
dim
|
H mm |
1100 |
1250 |
1400 |
1500 |
1750 |
1750 |
1910 |
| W mm |
750 |
750 |
850 |
1000 |
1000 |
1200 |
1200 |
| D mm |
1450 |
1450 |
1650 |
1850 |
1850 |
1980 |
1980 |
|
|
|
-
Temperature:
20℃;atmospheric
pressure; relative humidity:65%.
-
the company keeps the right of
revising and not informing customers.
|
| |
|
|
