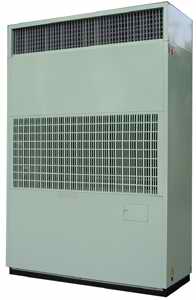

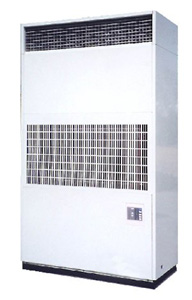

  INDUSTRIAL AIR CONDITIONER SERIES

 hot water type air conditioner

model KC-05H KC-08H KC-10H KC-10AH KC-15AH KC-20AH KC-25AH KC-30AH KC-40AH
capacity kW 15.5 24.7 30.8 30.8 45.2 61.5 81.3 92.4 123.2
BTU/h 52780 84150 105000 105000 157800 210000 277400 315500 420600
Kcal/h 13300 21200 26450 26450 39800 52900 69920 79500 106000
heating cap kW 15.5 24.7 30.8 30.8 45.2 61.5 81.3 92.4 123.2
compressor reciprocating or scroll hermetic

power source

3Ø 380V 50HZ(or select 60HZ)

power Kw 3.75 6 7.5 7.5 11.25 15 18.75 22.5 30

evaportor

type

cross-finned tubes

flow m3/h 2500 4000 5000 5000 7800 10800 13500 15500 22500

condensor

type shell and tube or shell pipe
flow m3/h 3.0 5.2 5.8 5.8 10.3 12.0 15.5 17.6 20.8
pipe inch 1 1-1/2 1-1/2 1-1/2 2 2 2-1/2 2-1/2 2-1/2

hot water heat exchanger

temp

45

type

shell and tube or shell pipe

pipe inch 1 1-1/2 1-1/2 1-1/2 2 2 2-1/2 2-1/2 2-1/2
refrigerant R-22(or select R407C/R134a/R410a/R404a)
air outlet free-blow duct-connection
protection

time delay,the protection of water shortage,the control and display of high and low pressure,the control of temperature,the protectionof over load,the oil heating,the errors display and so on.

drain pipe inch 1/2 3/4 1
weight kg 245 300 350 345 500 620 8100 950 1250

outside

dim

Hmm 1600 1650 1710 1700 1950 1950 1950 2000 2000
Wmm 1020 1200 1330 1330 1600 1820 1850 1880 2300
Dmm 500 500 540 540 780 780 900 1200 1200

- nominal cooling capacity is rated at indoor temperature of 27 db /19.5 cw

  entering/leaving water temperature of 29 /34.5

- the company keeps the right of revising and not informing customers.
