INDUSTRIAL CHILLER SERIES

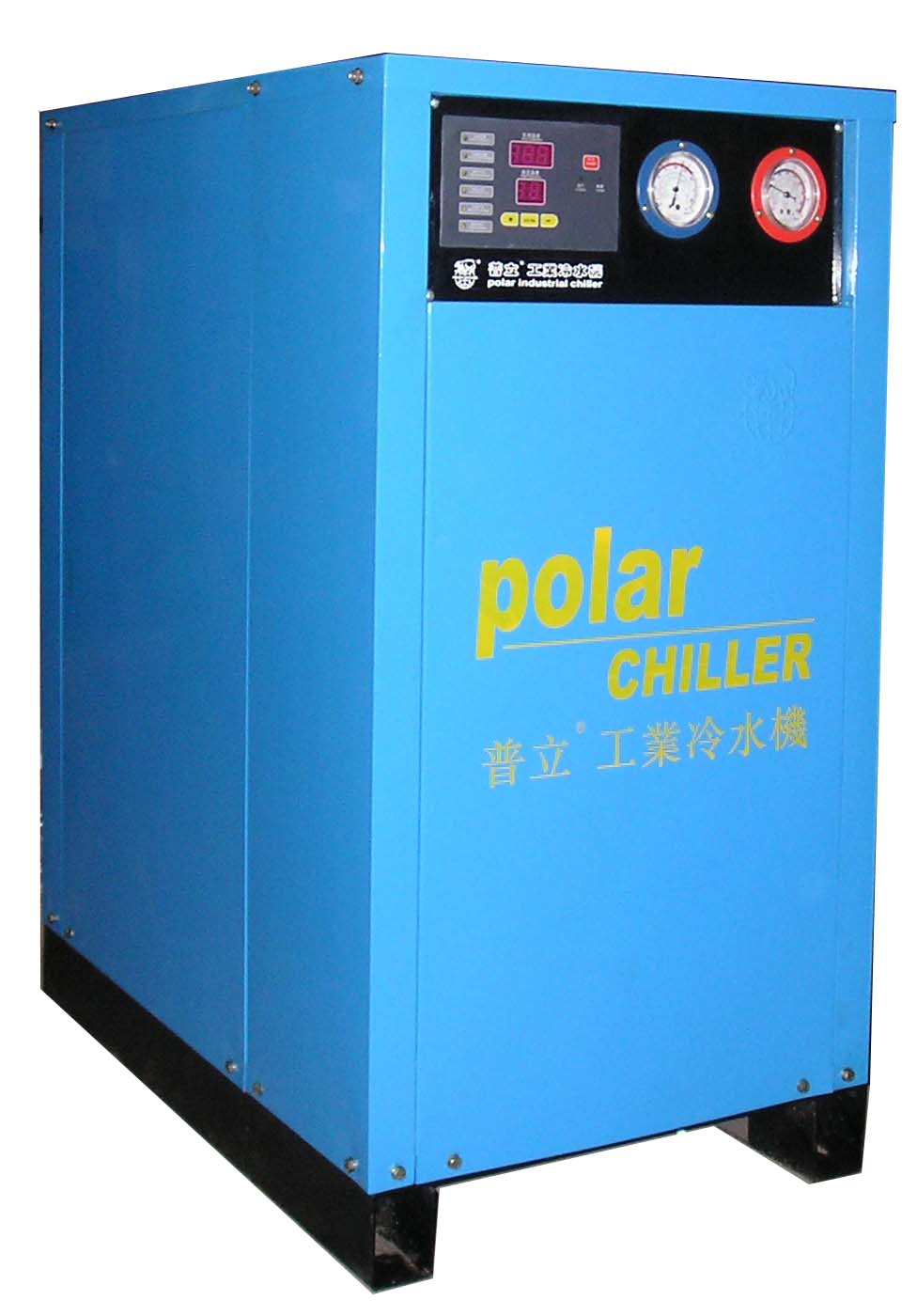

low temperature industrial chiller

model	water cooled	WP-04D	WP-06D	WP-08D	WP-10D	WP-15D	WP-20D	WP-30D	WP-40D
model	air cooled	RP-3D	RP-5D	RP-8D	RP-10D	RP-15D	RP-20D	RP-30D	RP-40D
0 - -15 type refrigerated capacity
capacity -5/40 *	Kw	6.9	10.0	14.2	17.1	28.2	34.2	56.4	68.4
capacity -5/40 *	kcal/h	5934	8600	12212	14706	24252	29412	48504	58824
capacity -10/40	Kw	5.6	7.9	11.2	13.3	22.3	26.6	44.6	53.2
capacity -10/40	kcal/h	4816	6794	9632	11438	19178	22876	38356	45752
capacity -15/40	Kw	4.3	6.0	8.5	10.2	17.2	20.4	34.4	40.8
capacity -15/40	kcal/h	3698	5160	7310	8772	14792	17544	29584	35088
capacity -20/40	Kw	3.2	4.4	6.3	7.5	13.1	15.0	26.2	30.0
capacity -20/40	kcal/h	2752	3784	5418	6450	11266	12900	22532	25800
-15 - - 40 type refrigerated capacity
capacity -25/40	Kw	2.8	5.7	9.0	11.7	17.4	23.4	34.8	46.8
capacity -25/40	kcal/h	2408	4902	7740	10062	14964	20124	29928	40248
capacity -30/40	Kw	2.2	4.4	6.6	8.8	13.2	17.6	26.4	35.2
capacity -30/40	kcal/h	1892	3784	5676	7568	11352	15136	22704	30272
capacity -35/40	Kw	1.6	3.2	4.6	6.3	9.5	12.6	19.0	25.2
capacity -35/40	kcal/h	1376	2752	3956	5418	8170	10836	16340	21672
capacity -40/40	Kw	1.1	2.2	3.4	4.8	7.0	9.6	14.0	19.2
capacity -40/40	kcal/h	946	1892	2924	4128	6020	8256	12040	16512
capacity -45/40	Kw	0.56	1.3	1.7	2.5	3.8	5.0	7.6	10.0
capacity -45/40	kcal/h	481	1118	1462	2150	3268	4300	6536	8600
can control temp C		-40 - +40 order please indicate the lowest temp
power source		3Ø 380V 50HZ or select 60HZ
compressor kw		2.25	3.75	6	7.5	11.25	15	22.5	30
evaporator		water tank type (or select shell pipe)
condenser	water cooled	shell and tube or shell pipe
condenser	air cooled	cross-finned rubes
refrigerant		R-22/R502(or select R404A)
in/out pipe inch		1	1	1-1/4	1-1/2	2	2-1/2	2-1/2	3
ice water pump kw		0.37	0.37	0.37	0.75	1.5	2.25	2.25	3.75
protection device		time delay,the protection of water shortage,the control and display of high and low pressure,the control and display of temperature,the protectionof over load,the oil heating,the errors display and so on.
outside dimensions	H mm	990 1010	1010 1150	1190 1200	1190 1250	1250 1280	1250 1280	1400 1800	1480 1880
	W mm	550 495	580 540	540 830	560 830	620 850	990 850	1000 1000	1100 1700
	D mm	770 970	880 1000	1200 1550	1200 1560	1450 1850	1450 2000	1750 2200	2050 2200

* vaporize temperature is -5/-10/-15/-20/-25/-30/-35/-40/-45 ,condenster temperature is 40 .

- order please indicate the lowest temp.

- other specification according to demand.

- reserves the right to modify the details shown here in without prior notification.
